Why is my rear differential leaking


This is a frequent issue that many automobile owners may face at some time. A rear differential leak can be caused by a number of factors, and it is critical to determine the source of the problem so that it can be resolved.

The rear differential is an integral part of your vehicle, transmitting torque and rotation through shafts running the length of your vehicle. The rear differential allows all front and rear wheels of your vehicle to spin at different speeds, which is very important for traction and stability on the road.

If the rear differential fails, it can cause vibration, noise and differential fluid leakage that affects your vehicle’s acceleration and handling.

The driver should contact a certified mechanic to correct the rear differential malfunction and prevent further damage to the vehicle’s undercarriage systems.

Continue reading to discover more about rear differential leak, their causes, and possible solutions.

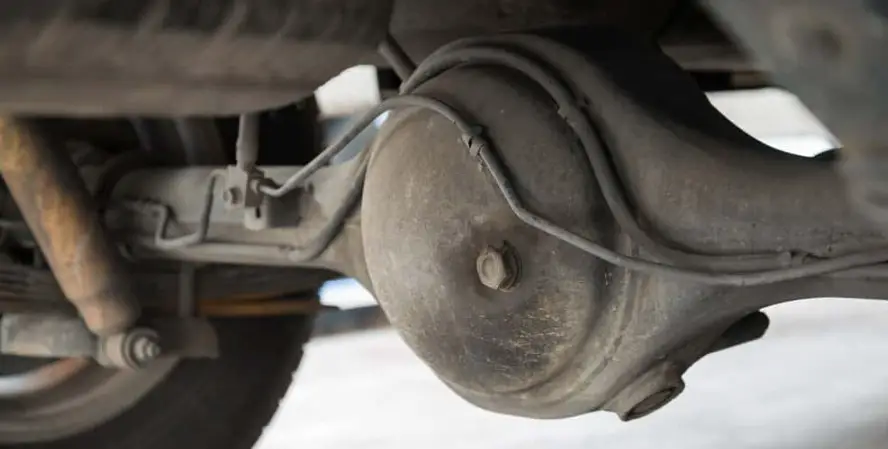

The Location Of The Rear Differential

The rear differential is located in the rear axle crankcase if the vehicle is rear-wheel drive. The rear differential is located in the gearbox crankcase if the vehicle is front-wheel drive.

The rear differential of a four-wheel drive vehicle is located in the crankcases of both axles as well as the transfer case.

What is the purpose of a rear differential?

The rear differential is an essential component of all rear- and four-wheel drive automobiles. Simply explained, it compensates for the difference in distance traveled by the vehicle’s inner and rear wheels when it turns.

On a rear-wheel-drive car, the rear differential is housed in a housing on the rear axle shafts and is lubricated with a special gear oil that is thick in consistency and black in color.

Also, the rear differential enables your vehicle to navigate around turns without sliding or driving off the road.

This would be the case if both drive wheels were rotating at the same speed, because the outside tire would move in rhythm with the inner tire. It would have been tough to steer the automobile. To prevent this from happening, the rear differential was devised.

What are the most common reasons for a rear differential leaks?

Rear differential leak can be caused by a variety of factors, including:

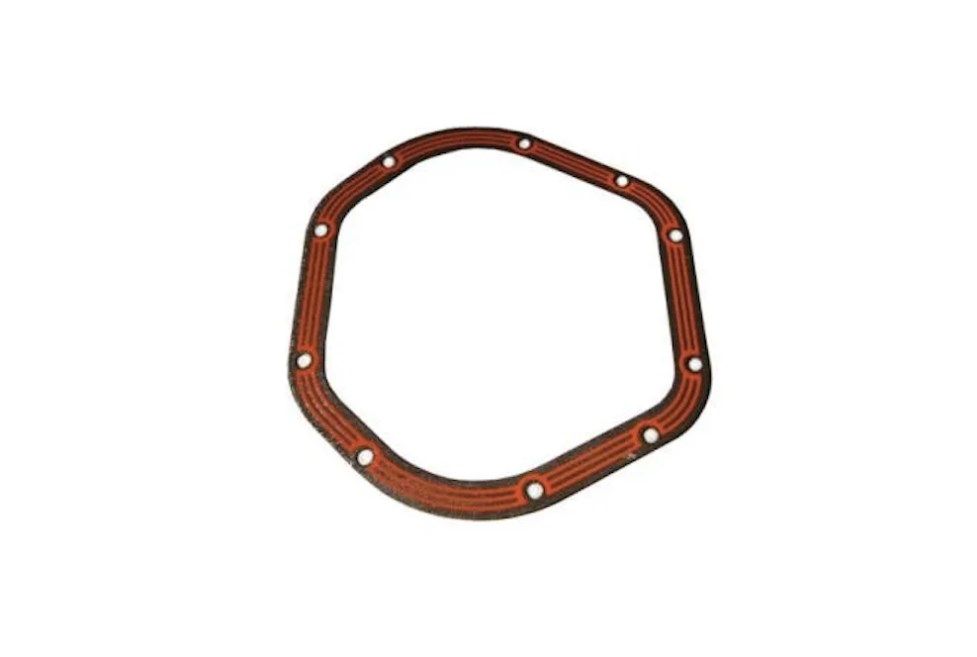

1. A faulty differential gasket

The differential gasket is the seal that holds the differential housing together. Although some differentials utilize silicone as the gasket, it is normally an oil-resistant preformed gasket. It seals the differential body, allowing transmission oil to properly lubricate the differential rings and gears.

When the gasket breaks, fluid can leak from the differential, causing fluid shortages and significant damage. A poor or malfunctioning differential gasket can often generate a number of symptoms that might alert the driver to a potential problem that needs to be addressed.

The differential gasket’s primary role is to form a seal between the differential case and the differential cover. Gear oil can seep through the differential gasket as it ages.

Depending on how much gear oil seeps through the gasket, this might leave visible traces of oil on the differential housing’s bottom.

A rear differential leak can typically be utilized for a while, but it will eventually grow into a full leak.

If this occurs, you will have no alternative except to replace the gasket totally to stop the leak.

2. Axle seals wear

The differential axle seals is a simple but important seal because it keeps the differential sealed and lubricated. When it fails, it can not only leave a mess, but also put the component it is supposed to protect at risk of accelerated wear and even serious damage.

Over time, this seal can wear or break, which allows differential fluid to axle seal leak through the differential axle seal. If you notice a seal leaking, repair it as soon as possible to prevent additional damage.

Rear differential parts can develop various leaks over time. Over a period of time If you suspect your axle seals may be leaking, take your vehicle to a professional technician, to determine if your vehicle needs a replacement of your worn axle seals.

3. Rear differential pinion seal

The differential pinion seal is found at the fork. This fork is attached to the driveshaft and is located in front of the rear differential. It is also constructed of rubber or silicone. It might become damaged and leak over time.

If you believe this seal is leaking, repair it right away to avoid further damage.

4. Vibration and fluid leaks

Universal joints that are worn or cracked will also create vibration along the driveshaft and into the engine cylinder block via the gearbox. At high speeds, this can be felt in the car body or through the floor.

The rear differential and universal joints, like the front differential, have seals and need grease to function correctly, and a leak or break in the seal can lead to vibration and rear differential failure. Examine the existence of differential fluid in the car’s trunk after it has rested overnight.

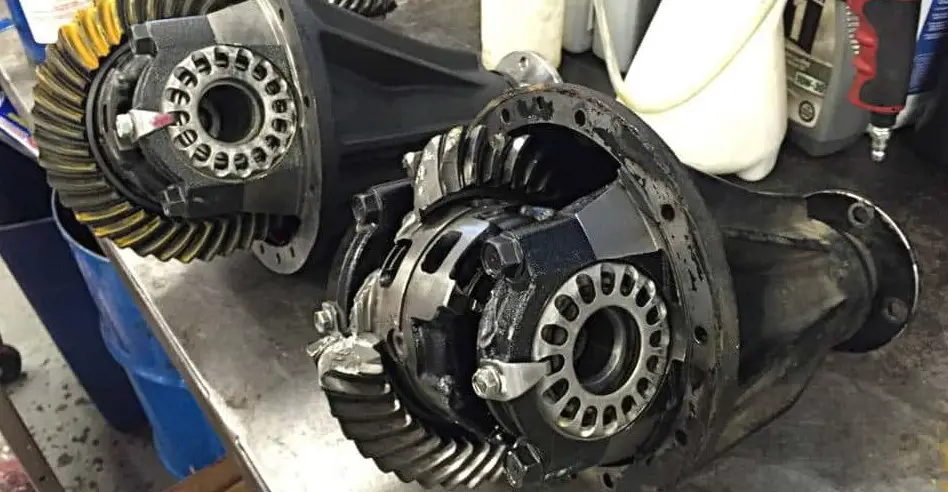

5. Worn rear differential gears

When the vehicle accelerates, there may be more noise, like a hum or a prolonged clunking noise in the rear.

This may be because the gears in the rear differential are brushed or partially worn, creating an awkward movement as the driveshaft rotates.

The noise can be particularly severe when the driver accelerates the vehicle quickly and has to brake quickly.

6. Defective rear differential cover

The rear differential cover is intended to protect the rear differential’s interior components from damage and water infiltration.

On many rear differentials, the cover that fits in the back is another point of possible leakage. It is also a cover that may need to be removed for regular maintenance.

If the cover is broken or fractured, leakage or other difficulties with the rear differential may occur. If the problem cannot be fixed, it may be necessary to replace the complete cover.

How to fix the rear differential leak?

If you discover a differential fluid leak in the rear differential, it is not the end of the world. It’s not a tough process and can be completed quite quickly if you have some basic auto maintenance expertise.

1. Sealer for rear differential leaks

The simplest and most straightforward solution to the problem. Rather of searching for the cause of the leak, add some sealant to the rear differential fluid via the oil fill plug.

On the market, there are various high-quality leak sealer products. While driving, it will fix the leak and return the seal to its original state.

2. Gear seal should be replaced

If the transmission fluid leaks, the rear differential with a faulty pinion seal must be replaced. On the front side of the rear differential is a fork. A seal will wear around this pinion seal over time.

To replace the seal, first remove the fork, followed by the seal. Reinstall the fork after replacing the damaged seal.

3. Sides are being sealed

This is how to prevent the rear differential fluid leak onto the rear brakes. Because the half axles must be removed, this procedure takes time. The damaged seals must then be removed and replaced. To finish the process, reassemble the shafts.

4. To seal the differential, apply differential sealant

Use differential sealant to repair a rear differential leak in the simplest method possible. You won’t even have to seek for the source of the leak. If it does its job correctly, the sealant might put an end to your leak problem.

You just need to apply this sealant to the rear differential fluid. Pour it in through the filler cap. You may select from a variety of sealants that are available online or at any store. Simply select a high-quality one.

5. Replacement of a pinion seal

The pinion seal is another source of leaking rear differential. The rear differential has a clevis at the front, and the seal might wear down over time.

To replace the seal, first remove the clevis and then the seal. After that, replace the seal and restore the fork to its components.

Sometimes the issue is more significant than a minor leak. In such situation, you may need to replace the complete rear differential leak. Contact a mechanic if this is the case.

Importance of rear differential fixing

Maintenance of the rear differential is important because the entire assembly does not contain more than a few liters of lubricant.

Even a small leak that goes undetected can cause fluid levels to be low enough to starve the axle bearings and cause other problems.

Periodic visual inspection of the parts mentioned above can provide early warning and save you from costly repair costs.

How to identify if something is wrong with the rear differential

Malfunctions of the rear differential have a direct impact on the car’s drivability, thus it is critical to check the status of this device and spot problems early. You can perform an initial check yourself if there is extraneous noise from the transmission.

The axle differential cannot be checked this way, but there are outward signs that there are problems with it.

Here’s what else can indicate a malfunction of the differential:

  • An increased noise when the load is increased is a sign of a worn idler gear.
  • A howling hum during rear differential operation can indicate wear on the satellites.
  • Crunching at different loads is a sign of rear differential bearings or axle seal wear.
  • Unusual sounds and knocking – due to low engine oil level.
  • Oil leaks – oil seals and gaskets are worn out.

Furthermore, if the rear differential is in the gearbox housing, excessive gearbox surface temperature signals a problem: the oil may need to be filled up or changed.

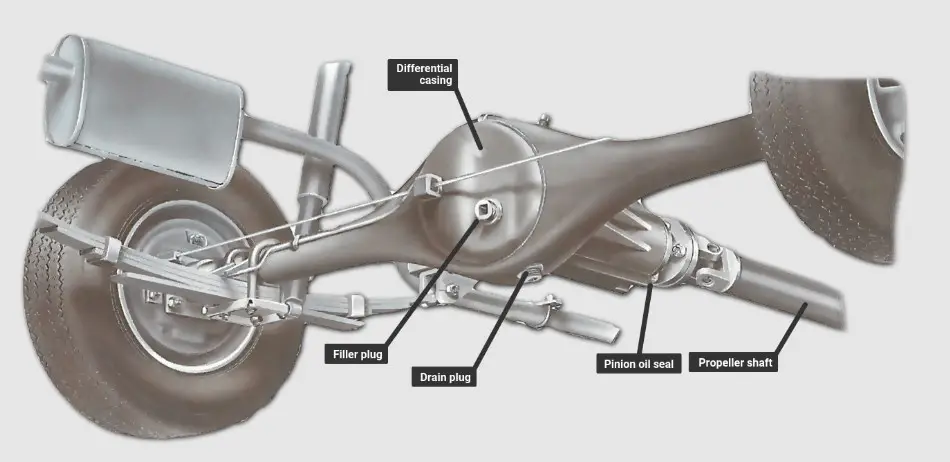

If the issue is with the differential pinion seal

Essential components in maintaining the safety of a vehicle are the rear differential cover, axle seal and axle shaft. It is crucial to fix these seals to keep the car running.

Before turning off the engine, remove the plug to drain the differential fluid into the pan. A funnel may be necessary to drain all of the differential fluid completely before removing the old pinion seal with a screwdriver or other tool.

You need to be careful when removing the old seal not to damage the differential body. Insert new rear differential side seals or axle seals into the rear differential housing using the seal installation tool.

When replacing rear differential seals, make sure to replace the filler plug first. Once it’s replaced, use a flash light to inspect the vehicle for any leaks caused by the repairs. If any leaks are found, continue to repair them until all leaks are repaired.

Cost for repairing a rear differential leak

Repairing rear differential leaks is typically affordable. This repair typically costs between $180 and $350. This figure covers labor and supplies. In most circumstances, the repair takes only a few hours.

If a differential gear repair is required, the cost skyrockets. For example, if you want a new pinion seal, the cost might easily exceed $1,400. A rear differential assembly’s differential gears are the most costly component.

If rear differential seal leak, the cost of fixing axle seal leak or replacing them is increased. A little axle seal leak may only be seen as a moist spot around the seal.

Why is rear differential service necessary?

The rear differential is an essential component of the car gearbox. If the gearbox receives, transforms, and then transmits torque to the vehicle wheels, then a mechanism known as the differential assures the normal transfer of this torque and is in charge of the vehicle’s driving characteristics. For example, allows you to move on and off the freeway.

It is difficult to build a truck or an automobile without a differential. If you attempt, its functioning will become extremely hazardous.

At the very least, at the moment the automobile begins to accelerate or enters a bend.

It is less expensive to rear differential service the time difference than to replace the entire system. Extraneous sounds in the transmission, oil leaks in the gearbox or differential crankcase, and vehicle handling must all be monitored.

Is driving safe if differential fluid leaks from the rear pinion seal?

The rear pinion seal where it links to the driveshaft may be leaking from the rear differential.

This question has no definitive solution because it is dependent on the degree of leakage and other factors. In general, you can drive if a little quantity of fluid is seeping from the pinion seal.

If the leak is severe or the vehicle has not been serviced on a regular basis, the differential fluid may need to be replaced more regularly.

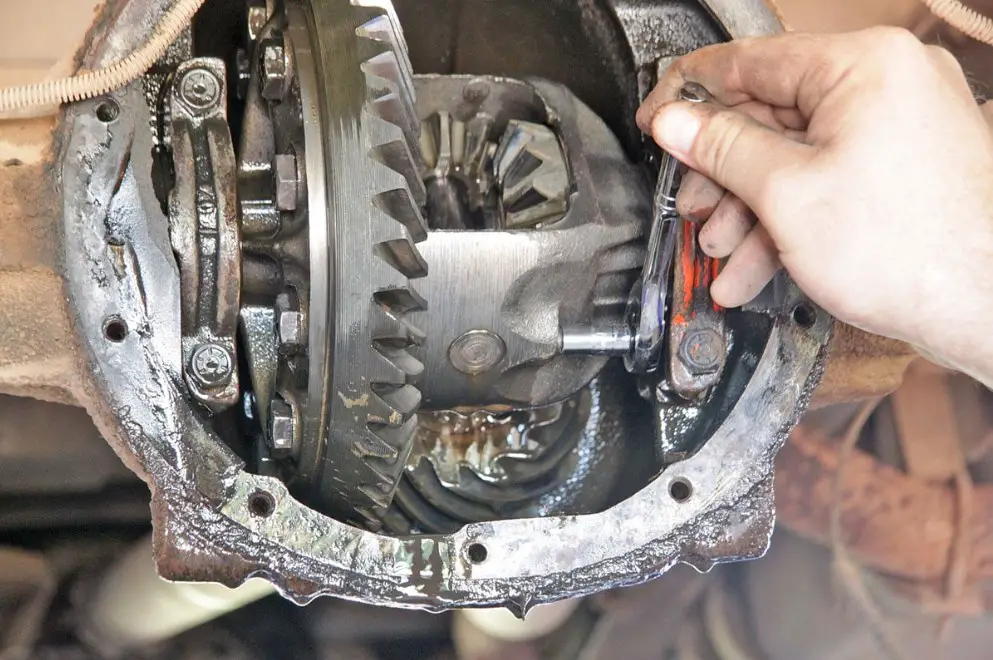

When the rear differential is serviced, what happens?

On rear differential service, the mechanic will first remove the rear differential cover. They will next remove the old transmission fluid from the housing and clean it of dirt and debris.

The mechanic will next replace the cover and refill the transmission fluid in the housing. You may now drive your automobile securely for 21.000 to 40.000 miles.

However, you must return the vehicle to the mechanic for another rear differential servicing.

Searching for a new rear differential

Finding a rear differential is really simple, but finding a new one can be rather expensive. Ignoring the rear differential breakdown is not suggested, at least for this reason – it is cheaper to repair it. The cost might range between $300 and $1,000.

However, some components of the rear differential, such as satellites, can be rather expensive. As a result, we propose that you start your search based on the vehicle’s specifications.

Despite the fact that vehicle differentials are constructed using roughly the same principles, their interchangeability is a major concern.

For the same automobile model, the same rear axle differential might have many designs, and the driver can even install a reducer with a “non-native” gear ratio. But, he or she will be dissatisfied with the outcome.

However, it is not worth the risk to purchase a rear differential for another vehicle. It is also not advisable to employ a previously used rear differential since its main parts may have changed.

What can I do to keep the differential seal from leaking?

To prevent rear diff fluid from leaking, take these basic steps: Damages to the rear differential cause leaks. Wear and tear and rust can also cause leaks.

Additional maintenance instructions also exist for preventing fluid leaks and making sure the differential isn’t damaged.

  1. Checking the differential fluid levels regularly helps ensure proper fluid levels in the rear differential. Checking the fluid levels when there are low or low-quality levels can also help detect engine fluid leaks and prevent big problems.
  2. Injuring axle shafts and debris can cause them to leak. Keeping the rear axle area clean minimizes this from happening.
  3. In order to detect any potential problems with the seals, it’s important to regularly inspect them. Doing so can help prevent any damage or wear on the seals over time.
  4. Regular maintenance tasks need to be completed by a mechanic that has expertise in the field. This can involve replacing worn or damaged parts, or replenishing fluids. It may also involve clarifying any issues that might have arisen due to poor work.
  5. Installing new components and fluid can increase differential life and prevent leaks. This will also improve overall performance, making the car more fuel efficient.

Frequently Asked Questions

Is a rear differential leak serious?

Rear differential maintenance and fluid changes are no longer as required on modern automobiles as they formerly were.
When issues arise, however, it is not advisable to fully disregard the discrepancy. Checking the level and quality of the gearbox lubricant is part of routine maintenance.
The rear differential requires regular maintenance since the entire unit contains only a few liters of grease. Even a minor leak can cause the fluid level to drop low enough to starve the axle seal bearings and create other issues.
A poor or failing differential gasket usually creates a number of symptoms that might alert the driver to a potential problem that needs to be addressed.

How much does it cost to fix a rear differential leak?

Consumables such as gaskets, bearings, and gear pairs are frequently replaced in differentials. However, there are times when a more substantial repair or replacement of the entire device is required.
Depending on the type and model of your car, this is a minor repair that will cost between $220 and $400.
If a differential gear repair is required, the cost skyrockets. For example, if you want a new pinion seal, the cost might easily exceed $1400. Differential gears are the most costly component of a rear differential system.
If your car requires a new rear differential component, the project might cost between $3100 and $3900. A secondhand rear differential assembly might also be costly. They range in price from $1400 to $1900 when fully fitted.

What happens when your rear differential leaks?

If the rear differential leaks, the gears and other differential components will not mesh properly owing to a lack of lubrication to aid in this operation.
The leaking also generates anomalous vibrations and noise, which affects acceleration and overall vehicle handling. In this scenario, you should call a trained mechanic quickly to fix the rear differential to avoid further damage to the vehicle’s drive system.

Is it worth fixing a rear differential?

There are essential aspects of your vehicle that you are unaware of until something goes wrong. Your rear differential is one of those items, and if it breaks, you’ll never forget about it.
Rear differential leak creates abnormal vibration, noise, and oil leaking, which reduces the acceleration performance and general handling of your vehicle.
If this happens, have a rear differential service to fix the rear differential leak as soon as possible to avoid damage to the vehicle’s drive system. Repairing and rebuilding the rear differential leak can be costly if it is not properly maintained.


The rear differential is an essential component of the automotive gearbox. If the gearbox receives, transforms, and then transmits torque to the car’s rear wheels, then a mechanism known as the rear differential assures the normal transfer of this torque and is in charge of the car’s driving characteristics.

It, for example, allows for navigating on and off the roadway. It is difficult to build a truck or an automobile without a rear differential. And if you attempt, its functioning becomes extremely hazardous. At least until the automobile reaches a high speed or begins to approach a turn.

You should immediately rectify the rear differential leak. Otherwise, you risk causing more damage to the rear differential gears, which are often more expensive to fix.
